How can I enable logging for a QIE form?

Question

I often want to debug my code within a QIE form.  Is there a way to log messages from within the context of a form?

Answer 1

The traditional logging statements of a channel (qie.info(), qie.warn(), etc...) do not work within the context of a form.



However, QIE uses log4j, which can be tapped into.  To do so, try the following:



var logger = org.apache.log4j.Logger.getLogger("My_Form_Script_Logging");

logger.warn("I can log my output statements within a form!!!!");



You will then find your log statements in your qie.log file.

Comments

Starting with version .49 the logger was updated from log4j1.x to log4j2.x.  So, after this version use:

var logger = org.apache.logging.log4j.LogManager.getLogger("My_Form_Script_Logging");
logger.warn("I can log my output statements within a form!!!!");

Answer 2

To place a "flashlight" in the form load script, you can enable a text area field on the form:

<tr>

  <td align="center" style="vertical-align: middle;">

    <widget id="temp" type="textArea" height="200" />

  </td>

</tr>

and then populate it in the form load script as follows:

fieldData.put('temp', 'I can display relevant information in this text area');

Answer 3

A quick and easy way to place a "flashlight" in the form load script is to use an error message.  There are 2 different ways of doing this.

The first way is to use the forms built in failure message as follows:

fieldData.put("failureMessage", 'I can return an error message to the user.');

fieldData.put("redirectOnFailure", "true");

return;

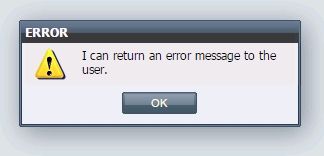

This produces a message that looks like this:





When the "Ok" button is pressed, the form then closes.



The second way is to use a JavaScript throw statement as follows:

throw 'I can throw an error in the script.';

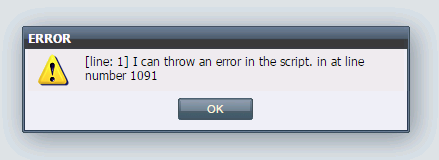

This produces a message that looks like this:





In this case, when the "Ok" button is pressed, the form is not closed.



With both of these options, displaying a large amount of data, or structured data like XML does not work very well and using another method will usually work better.



Answer 4

Here is another option, but it requires the use of a channel.  Setup a channel as a listening webservice, create a webservice connection, and wrap the call to the webservice in a published function called "callLogger".  You can then call the logging service with the following call:

callLogger("This is a test log message from a form");

Here is a link to the configuration: https://www.qvera.com/kb/?qa=blob&qa_blobid=8627679385102658782
